Highlights of this design

Design Simplicity

Fewer drivers means there are fewer sources that need to be integrated seamlessly. In this regard, simple two-way designs like the SongBird provide integration that results in seamless response between the drivers.

Incredible Imaging

For this same reason, imaging with a simple two-way design like this is superb. While these speakers will not handle as much power as our regular SongTowers or our more expensive two-way designs, these speakers offer pin-point imaging that is second to none.

Incredible Bass

Sure, the bass response of our more expensive designs is superior. But people are always amazed at the bass extension we get from a single 5" driver. This is due to the transmission line cabinets used in this design.

Transmission Line

The transmission line cabinet in this design allows the 5" woofer to play about 10Hz deeper than it would if that same driver were mounted in a standard ported cabinet. TL-based designs can also be placed closer to room boundaries without causing problems with boomy bass.

Testimonials

See what people are saying about the SongBird

Frequency Response

Extreme Accuracy

Flat Response

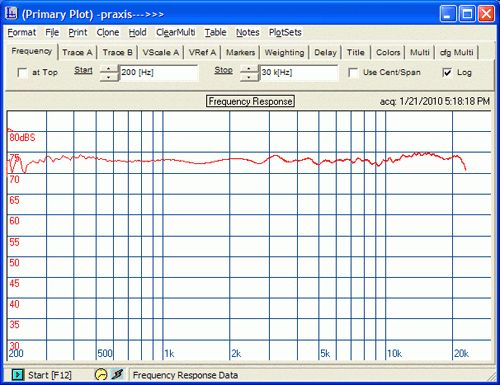

As you can see in this frequency response plot, the SongBird design is extremely accurate with ruler flat response. You will hear the music EXACTLY as it was produced.

Phase Coherent

In addition to flat frequency response, the SongBird design is phase coherent in the crossover regions resulting in a speaker that images exceptionally well.

SongBird

Specifications




Model SongBird
Design 2-way
transmission line
Tweeter Hiquphon OW1
Woofer Seas ER15
Response +/- 3db 38Hz - 20kHz
Sensitivity 84 dB
Impedance 8 ohms
Amplification 100 watts
Alignment Transmission line
Dimensions 8 W x 10 D x 40 H
not including plinth
Weight 35 pounds each
Price $1495 per pair
in standard finish **
* All dimensions in inches.
** Standard finishes include curly maple, curly cherry, curly walnut, oak, straight mahogany and satin black. Wood veneers can also be dyed. So, for example, you can have deep rose-red curly cherry or electric blue curly maple. See gallery for examples.
